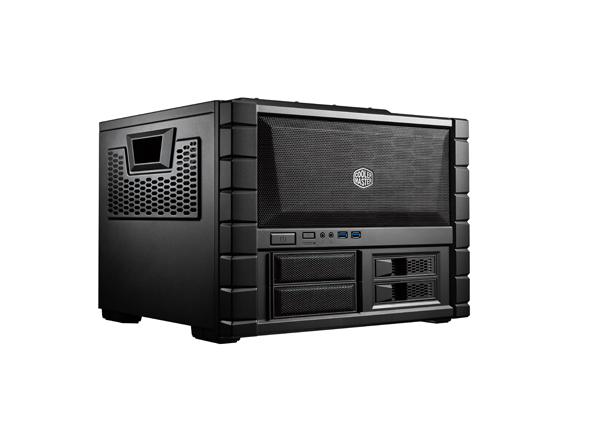

HAF XB
RC-902XB-KKN1
RC-902XB-KKN1
Specs
| Model | RC-902XB-KKN1 |
| Material | Steel body, Front Mesh, Plastic bezel |
| Dimension | 442(W) x 330(H) x 423(D)mm / 17.4 x 13 x 16.7 inch |
| Weight | 8.2kg / 18.1lb |
| M/B Type | ATX, Micro-ATX, Mini-ITX |
| 5.25" Drive Bay | 2 |
| 3.5" Drive Bay | 2 (from X-Dock) |
| 2.5" Drive Bay | 6 (2 from X-Dock) |
| I/O Panel | USB 3.0 x 2 (internal) Audio In & Out x 1 (supports HD Audio) |
| Expansion Slots | 7 |
| Cooling System | Front: 120mm fan x 2, 2024 RPM, 21 dBA (or optional 140mm fan x 2) Rear: 120mm fan x 1 (optional), and 80mm fan x 2 (optional) Top: 200mm fan x 1 (optional) |
| Power Supply | ATX PS2 (Support Max. of the PSU in 180mm length) |
| Maximum Compatibility | VGA card length : 334 mm / 13.1 inch CPU cooler height : 180 mm / 7.1 inch 155 mm / 6.1 inch (with top 200mm fan installed) Water cooling support : 240 mm radiator x 1 (front) 120 mm radiator x 1 (rear) |
| Accessories | Transparent Top Window Panel Removable Motherboard Tray |
| Warranty | 2 years |
| UPC Code | 884102019616 |
-
+
-
Click logo to read full review:
techspot.com : December 2013
"As someone who reviews computer hardware for a hobby, I have access to nearly any case I might want. As I type, the Level 10 GT, Antec Lanboy Air, Bitfenix Colossus, Cubitek HPTX-ICE are collecting dust in my house, and yet I've decided to build a permanent system in the HAF XB because I like it too much to leave it empty. That's perhaps the best compliment I can offer and it serves as a testament to the HAF XB's all-around quality. We're glad to see Cooler Master's HAF series knock another one out of the park."
» Details
tomshardware.com : August 2013
"Cooler Master's HAF XB is a unique, flexible, and durable chassis able to satisfy a number of functions well. Its price is moderate, and we can't really find anything wrong with it. It simply works well in the roles it was designed to satisfy......In its element, the HAF XB steps up to earn Tom's Hardware's Smart Buy award for serving up notable value, a functional design, and Cooler Master's sprinkle of innovation as it tries something new."
» Details
pcper.com : August 2013
"Best of all for me is the configuration options that are open for cooling the top level components. You can use larger air coolers, single or multiple all-in-one water coolers, or even custom cooling loops using multiple radiators. Further, the case can be modded to allow for use of even larger radiators such as 360mm (3x120mm) size radiators without much work needed. For routing, the custom water system can be split between levels with the pump and reservoir installed on the lower level without much hassle."
» Details
Gadgetsteria.com : April 2013
"The HAF XB is a mid-tower case as unconventional as it is. But even as “just” a mid-tower there is still plenty of room for all your gear. Besides being roomy, it’s lightweight and super easy to carry around. It’s not overly loud despite all the open space to the outside world and it has killer looks to boot. And let’s face it. The orientation of the motherboard that has it facing upwards combined with the top cutout in the case is simply cool to look at. And at $99, it’s quite a bargain. A Gadgetsteria favorite for sure."
» Details
Funkykit.com : March 2013
"The HAF XB is a solid case for the money. It offers up a nice alternative compared with traditional looking cases. If you were wanting a cube-shaped case the HAF XB works quite well and does a solid job."
» Details
modders-inc.com : February 2013
"Swapping out components was easy and quick. Here is the stand out feature as a test bench for me and my particular situation. Right now I am limited in space so I cannot always have a test bench on my desk. The HAF XB allows me the ability to protect the components by installing the panels and putting the entire thing away which protects the components on the inside. Most other test benches do not have theat capability."
» Details
futurelooks.com : February 2013
"Overall, Cooler Master included everything that really matters whether you need a tech station or a LAN party friendly system. The Cooler Master HAF XB has many enthusiast and modder possibilities waiting to exploited. This is why I can’t help but wonder what it would look like in white, or two tone black with NVIDIA green. Tired of the usual enclosures? Grab the Cooler Master HAF XB."
» Details
Gogaminggiant.com : February 2013
"I highly recommend this case to ANYBODY who is looking to get a case to fill any of the aforementioned needs, you won’t regret it. The cooling performance is on par for a mid-tower, there is plenty of space for cables, video cards, as well as CPU coolers… What else do you really need from a case?"
» Details
Umlan.com : February 2013
"Overall, the HAF XB is a great case as a testbench/LAN box. While it isn't a case for everyone, for those who want to have excellent airflow for their core components, then this is one case that fits the bill very nicely."
» Details
Hitechlegion.com : December 2012
"Overall the HAF XB is an excellent chassis that anyone would be lucky to own. The chassis is feature rich at a great price, and suites the needs of any user. The Cooler Master HAF XB earns the HiTechLegion Editor’s Choice award because of its great price to performance ratio. As well as the unique design allowing for enthusiasts, overclockers, and gamers alike to enjoy an easy great build."
» Details
Xtremetechjunkies.com : December 2012
"The Cooler Master HAF XB to be honest is cheap as hell for a chassis of its quality. Sturdy, solid builds are hard to find in this price range without the loss of some feature or another. On a technical perspective, you get just the right amount of bays, wires, aesthetics, and room to make using the HAF XB very enjoyable, then you add in the fact that I can also run this without the three panels and use this as an open air test bench; I just love that part"
» Details
Linustechtips.com : November 2012
"This thing has phenomenal build quality considering the price and a very modern feature set to go with it!"
» Details
Benchmarkreviews.com : November 2012
"The value: ah, the value. I admit I was surprised by the relatively low cost of this case. For what you're getting, I think $99.99 is a screaming deal; I have reviewed other cases at a similar price point that offer nowhere near this level of function and convenience. Cooler Master's HAF series has always been about a good price/performance ratio, but I think this one hits it out of the park.If you've the desk space for it, and you like easy transport of and access to your full ATX system, this is the best case on the market for you now. "
» Details
legitreviews.com : November 2012
"The Cooler Master HAF XB is a chassis that redefines our computing experiences and allows the average individual capabilities that can give us years of use and flexibility that only so very few mid-tower chassis can truly claim."
» Details
tweaktown.com : November 2012
"CM's HAF XB is an enthusiasts dream! With potential to do almost anything, it looks great while doing so, and it transforms into an open air test bench or a LAN box with just the use of six screws. With a complete package deal, including the price, it doesn't make any sense to pass this by!"
» Details
overclockersclub.com : November 2012
"I will admit the squatty stature of the build might not be for everyone. It is a lot fatter than your typical case – easily two Corsair 650Ds next to each other, but it stands less than half the height as well. If you can afford the extra floor/desk space, then I highly recommend the HAF XB. Cost, appearance, and quality can't be beat at this price range. This is the ultimate LAN rig. Props to CM and the HAF XB."
» Details
Hardwarecanucks.com : November 2012
"Currently, the enclosure market is filled with similar chassis which have very few unique distinguishing features so when a potentially innovative product comes along, we sit up and take notice. This time it is Cooler Master pushing the boundaries with a unique spin on the typical ATX case which literally turns everyday design convention on its head. Dubbed the HAF-XM, it is dubbed a "LAN Box" and uses a cube-like approach that puts nearly every installation element right at your fingertips. "
» Details
Tech-kings.net : November 2012
"You get a smaller box without the sacrifices most other small chassis make, the flexibility for a full 240mm radiator and/or Tri-SLI/Crossfire, and a case that is as fun to build in as larger cases and is super easy to manage your cables as well. Cooler Master has thoughtfully executed on making a small case that is easy to build in, and also giving the user plenty of options normally reserved for full towers. Bravo."
» Details
hardwaresecrets.com : November 2012
"The Cooler Master HAF XB will certainly please the user who is looking for a non-conventional looking, yet practical, computer case. This case is perfect for overclockers and tweakers who need to open the computer quite often, as the motherboard is located at the top half of the case, and you have access to the motherboard and components that are attached to it by simply removing the top panel."
» Details
pro-clockers.com : November 2012
"The Cooler Master HAF XB is a prime example of getting two products for the price of one. It can make for the perfect gaming chassis or it can be opened up to become the ideal test bench station. The purchaser is the one who has to decide what the better solution is for them. "
» Details
Overclockers.com : November 2012
"All told this is a solid, interesting, functional case worth of consideration for your next build. I approve of it. There are a few things that could be done better, but nothing show stopping by any means. I give it the official Overclockers.com seal of approval."
» Details
Pureoverclock.com : November 2012
"The Cooler Master HAF XB has great aesthetics appeal and the versatility of its multi-purpose case gives users great value per performance."
» Details
lanoc.org : November 2012
"What really impressed me the most about the HAF XB was its price. At Under $100 MSRP, this is a good case with a large list of features. Things like the front panel USB 3.0 ports costs money and drive up the costs normally. I expected a slightly higher price point because of that, but I think Cooler Master priced this in a way that should bring in a lot of interest to this unique case design."
» Details
ninjalane.com : November 2012
"Overall construction of the HAF XB is quite good and featured high quality steel construction throughout and double rivets at each of the joints. There are plenty of modding opportunities with this case including custom paint and DIY watercooling. Chassis mods are not suggested given the construction however, if you wanted to convert this into a 24/7 benching station it could be accomplished with a little Demel action and some fiberglass."
» Details
-
Click logo to read full review:
-
+
-
+
-
Downloads:
- HAF XB Product Sheet -
