CM Stacker 830 NVIDIA Edition
NV-830 (Discontinued)


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Introduction

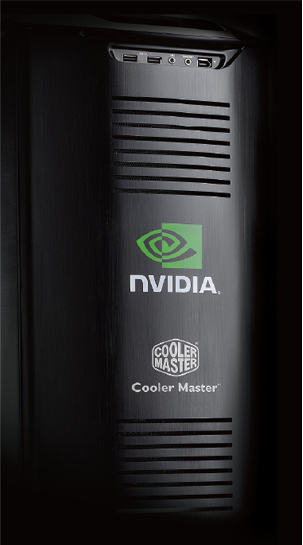

The CM Stacker 830 has been proven to be the leader among all chassis with its streamlined design and powerful functionality. Right now, we are proud to announce that CM Stacker 830 is the world’s first SLI certified chassis.

Celebrating this moment and the birth of next-generation graphic car – GeForce 8800, the CM Stacker 830 NVIDIA Edition is bred to your face. It also bears high upgradeability and prominent thermal solution for the definitive gaming demand. Nvidia and Cooler Master fans can finally find what they are looking for.

Thanks to the unique partnership between NIVIDIA and Cooler Master

Brilliant ATX/BTX dual compatibility mechanism Side fan tray can be installed with various fans for providing superior airflow (fans are optional)

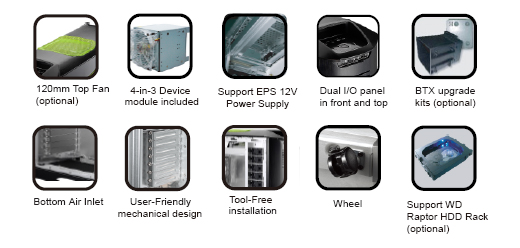

Key Features
-- Value-added functionality
-- Front panel opens to the left or the right for easy access
-- Power supply may be installed upwards or downwards for better airflow and neat cable management
-- The match of green and black colors enrich the whole appearance - solid construction and streamlined design

Tool-free user-friendliness
-- Screwless slots
-- Exclusive fan frame design provides easy screwless assembly - side-opening design to remove 5.25" shield easily

Unmatchable upgrade ability
-- Support up to nine 5.25" drives
-- Multi-positioning for the 4-in-3 device modules, providing maximum flexibility in the use of space

Superior Airflow
-- Accommodates up to 120mm fans
-- High ventilation openings on the top and the sides for excellent thermal management

Specs

Model NV-830
Available Color Black ( Green Mesh)
Dimension 9.84in (W) x 21.10in (H) x 25.11in (D)
Weight 35.2 lbs
Material Aluminum
M/B Type E-ATX (does not support Dual Xeon Nocona), ATX, m-ATX, BTX, m-BTX,PICO-BTX
5.25" Drive Bay 9 (Exposed)
3.5" Drive Bay 4 (Hidden) from 1 x 4-in-3 Device Module included; 1 x 3.5
I/O Panel Dual I/O Panel in Front and Top USB 2.0 x4, IEEE 1394 x1, MIC x1, SPK x1
Cooling System One 2 Fans Included:
One 120x120x25 mm Front Fan (LED)
One 120x120x25 mm Rear Fan (Exhaust)
Optional Fan Configuration: (Extra Fans Not Included)
Supports up to 9 x 12 CM FAN (optional)
Front x 3, Top x 1, Rear x 1, Side x 4 (Side
Expansion Slots 7
BTX Upgrade Kits SRM, BTX Air Duct, and BTX I/O shield(optional)
Power Supply Standard ATX PS2 (Optional)
Support EPS 230mm PSU
Other **Cross Flow Fan will NOT work with the Nvidia 8800 Series or the ATI R600 Cards**
**Cross Flow Fan will NOT work with any video Cards longer than 12
Warranty 2 years
