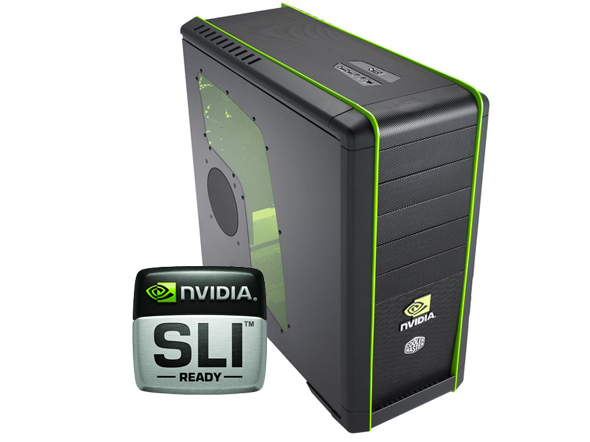

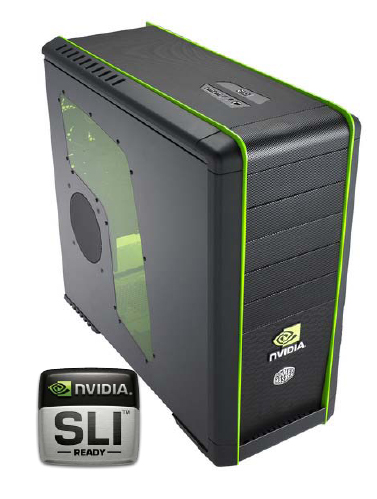

CM 690 (nVidia edition)
NV-690C-KWN1-GP (Discontinued)


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

PRODUCT FEATURES
> Stylish appearance with nVIDIA logo
> Accommodates up to six 120 mm fans for high-efficiency ventilation
> Removable HDD racks provide for easy assembly
> Cable management design for better cable routing and neatness
> Tool-free user-friendliness for quick maintenance and upgrade
> nVIDIA SLI cerified chassis
PRODUCT HIGHLIGHTS
Tool-free Mechanism
> Removable HDD racks with anti-vibration pads for easy assembly and reduced noice
> Tool-free kits for add-on card installation
> Tool-free design for 5.25" devices
> Thumb-screws for easy open side panel

Specs

Model NV-690C-KWN2-GP
Available Color Black
Dimension (L)524.5 X (W)213 X (H)482 mm
Material Chassis: SECC, Bezel: Metal mesh+ABS
Motherboards ATX, Micro-ATX
5.25" Drive Bay 5 Exposed (without the use of exposed 3.5” drive bay)
3.5" Drive Bay 1 Exposed (converted from one 5.25” drive bay)
HDD Support 5
Cooling System Front :120 mm green LED fan x 1, 2024 rpm, 21 dBA, Rear : 120 mm standard fan, 1200 rpm, 21 dBA Top : 120 or 140 mm fan x 2 (optional) Bottom : 120 mm fan x 1 (optional) Left : 120 mm standard fan x 1 Right : one 80 x 15 mm fan (optional)
I/O Panel USB 2.0x2, IEEE 1394 x1, MIC x1, eSATA x 1, SPK x1 (support Intel HD /AC’ 97 Audio)
Expansion Slots 7
Power Supply Standard ATX PS2/ EPS 12V (Optional)
