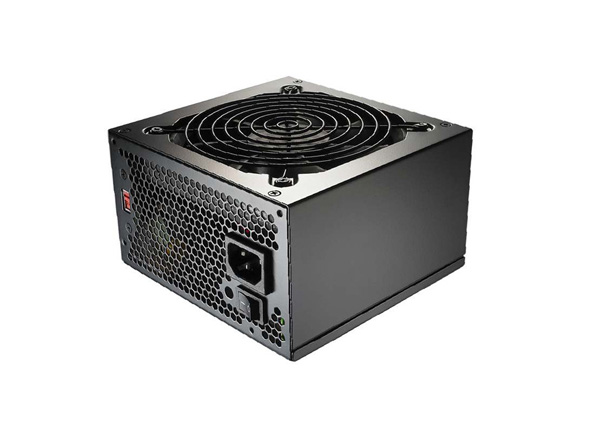

eXtreme Power Plus 500W
RS500-PCARD3-US


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

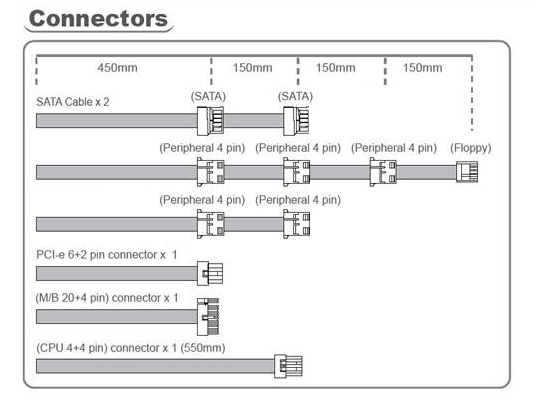

Connector Solutions
20+4 pin Motherboard Connector x 1 4+4 pin +12V CPU Connector x 1 6 pin PCI-e Connectors x 1
S-ATA Connectors x 4 4 pin Peripheral Connectors x 5 4 pin Floppy Connectors x 1
Features
1. Compliance with the newest Intel standard ATX 12V V2.3
2. More than 70% efficiency at typical load operation
3. Higher reliability (MTBF > 100,000 hours)
4. Green power design to meet energy star and blue angel requirements
5. Super silent operation with intelligent fan speed control
6. Multiple protection design (OVP/OCP/OPP/SCP)
7. Support dual +12V1 and +12V2 outputs for higher power usage
8. Two-year warranty

Specs

Model RS500-PCARD3-US
Type Intel Form Factor ATX 12V V2.3
Dimension Standard ATX 150 x 140 x 86 (mm)
Input Voltage 90 ~132V/180~264V (Selectable)
Input Current 10 A @ 115Vac / 6 A @ 230Vac
Input Frequency Range 47 ~ 63 Hz
PFC None PFC
Power Good Signal 100 ~ 500 ms
Hold Up Time > 17 ms
Efficiency >70% Typically
MTBF >100,000 hrs
Protection OVP / OCP / OPP / SCP
Output Capacity 500 Watts
Operation Temperature 0~40°C Nominal Input Voltage
Safety Nemko / TUV / cUL / CE / BSMI /FCC / C-tick / CCC (Passive Model Only)
Fan Sleeve bearing 120mm fan
Connector M/B 20+4 Pin x 1
CPU 4+4 Pin x 1
PCI-E 6 Pin x 1
4 Pin Peripheral x 5
SATA x 4
4 Pin Floppy x 1
Warranty 2 years
