Turbine Master MACH0.8 (R4-TMBB-08FK-R0)
R4-TMBB-08FK-R0


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

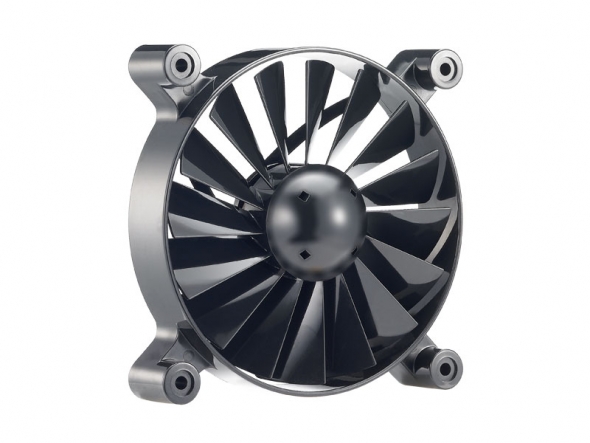

The unbreakable rule has now been broken. Cooler Master’s Turbine Master is the company’s latest 120mm high air flow fan that refutes the standard of “high air flow fan = loud”. Modeled after a strong turbine engine, the Turbine Master produces a strong air flow from an ingenious16-blade design and generates unsurpassed airflow combined with a circular semi-frameless design to maximize coverage and reduce noise. The Barometric Ball Bearing (BBB) can be easily removed to provide effortless cleaning and quick maintenance.

Features:
  • The innovative Barometric Ball Bearing technology provides longer life span while remaining lower noise level.
  • Removable blades for quick and easy cleanup.

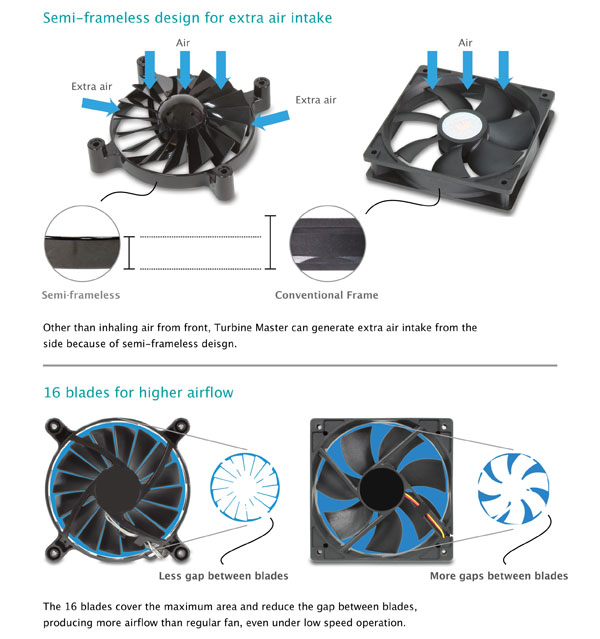

  • Outstanding 16-blade design covers maximum area to generate striking airflow, even under low speed operation.
  • High airflow design gives excellent chassis ventilation.
  • One-of-a-kind turbine shape inspired by a powerful turbine engine.




Specs

Model R4-TMBB-08FK-R0
Dimension 120 x 120 x 25 mm
Speed (R.P.M.) 800 R.P.M. ± 10%

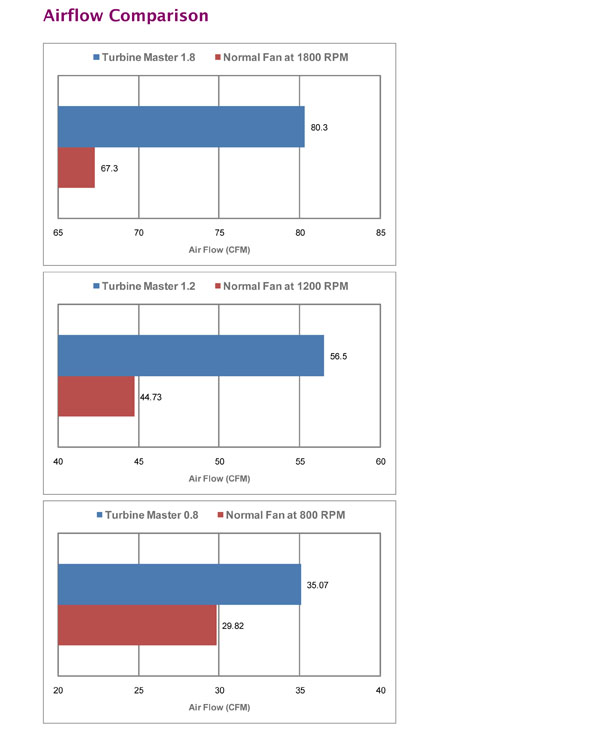

Air Flow (CFM) 35.07 CFM ± 10%
Air pressure (mmH2O) 0.42 mmH2O
Noise Level 13.83 dBA
Bearing Type Barometric Ball Bearing
Fan Life Expectancy 100,000 hours
Voltage 12 V DC
Current (Ampere) 0.08A (0.2A MAX)
Power consumption 0.96W (2.4W MAX)
Weight 123.7 g
Connector 3-pin
Accessories Rubber screw x 4
Metal screw x 4
Rubber pad x 4
Molex-to3 Pin adaptor x 1
Warranty 1 year
UPC Code 884102009891
