Elite 311
RC-311


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Elite 311 (RC-311) , successor of our Elite 310, with improved PSU placement for better cooling, it accommodates micro-ATX and ATX motherboards, built with a modern black design body and multi-color frame on the front panel. This chassis maintain Elite's pedigree of compact-sized and quality build that would look great in any space. To express more character to the product, Elite 311 will also have the multi-color selections demanding for the customers in the future release.

  • Front Vent provides superior ventilation to maintain constant cooling

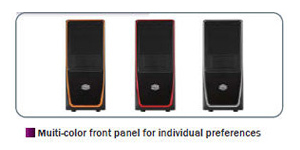

  • Multi-color front panel for individual preferences
  • Supports Long VGA cards including ATi's HD 5970, * (HDD Cage will need to be removed when installing VGA in the 4th slot and below)
  • Side ventilation holds for better cooling performance
  • Rear 120 mm fan provides the best cooling solution
  • Improved PSU placement ( Bottom) Removable HDD Cage


Specs

Model Blue - RC-311B-BKN1
Silver - RC-311B-SKN1
Orange - RC-311B-OKN1
Red - RC-311B-RKN1
Blue (window) - RC-311B-BWN1
Silver (window) - RC-311B-SWN1
Orange (window) - RC-311B-OWN1
Red (window) - RC-311B-RWN1
Available Color Black/Blue, Black/Orange, Black/Silver, Black/Red
Material Steel body, ABS Plastic, Mesh front bezel
Dimension 190 x 450 x 477 mm / 7.5 x 17.7 x 18.8 inches
Weight 5.6 kg / 12.3 lbs
M/B Type ATX / Micro-ATX
5.25" Drive Bay 3 Exposed
3.5" Drive Bay 2 Exposed
5 Hidden
I/O Panel USB 2.0 x 2, MIC x 1, Audio x1
Expansion Slots 7
Cooling System Front: 120/ 140 mm fan (optional)
RearL 120 x 25 mm fan x 1, 2024 rpm, 17 dBA;
80/90 mm fan x 1 (Optional)
Side: 120 mm fan x 1 (Optional)
Power Supply Standard ATX PS2 (optional)
Maximum Compatibility CPU cooler height: 160 mm
VGA Card Length: 281 mm
422 mm (Without HDD cage)
Warranty 2 years
UPC Code Blue - 884102012006
Silver - 884102011993
Orange - 884102012013
Red - 884102012020
Blue (window) - 884102012969
Silver (window) - 884102012945
Orange (window) - 884102012952
Red (window) - 884102012976
