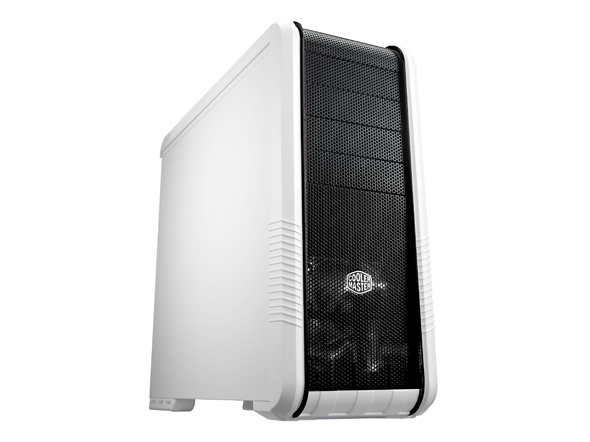

CM 690 II Advanced Black & White Edition
RC-692A-KWN5-BW (Discontinued)


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Utilizing the feedback from market, Cooler Master newly launches the trendy and stylish CM 690 II Advanced Black & White Edition. The new case makes it possible to take advantage of excellent airflow and water cooling options to vastly reduce temperatures on system components. The CPU mounting hole size has been enlarged to make installing CPU heatsink backplates even more convenient, and the rubber grommets have been redesigned for improved cable management. Additionally, it is equipped with two USB 3.0 internal connectors for faster data transfer.
  • Stylish Black & White Design
  • Supports two USB 3.0 ports (internal)
  • Enlarged front and top mesh design for superb ventilation
  • Can accommodate an internal 120 x 240 mm radiator at the top and bottom
  • Dust-control filters for all meshed areas
  • Supports for up to 10 fans (up to 5 x 140 mm fans)
  • External SATA docking station (X-dock)
  • Rear tubing holes for water cooling
  • Includes 1.8" & 2.5" HDD and SSD adapters
  • More and redesigned rubber grommets for improved cable management
  • Larger CPU heatsink cut-out on the mainboard tray







Specs

Model RC-692A-KWN5-BW
Color Black & White (w/ inner black coating)
Material Steel body / Plastic + Mesh bezel
Dimension 214.5 x 496 x 528.8mm / 8.4 x 19.5 x 20.8 inch
Weight 9.56 kg / 21.08 lb
M/B Type Mini-ITX, Micro-ATX, ATX
5.25" Drive Bay 4 (without the use of exposed 3.5" drive bay)
3.5" Drive Bay 6 hidden (4 are removable), 1 exposed
(converted from one 5.25" drive bay)
2.5"/3.5" - SATA HDD Drive Bay 2 (converted from one 3.5” drive bay)
I/O Panel USB 3.0 x 2 (internal), USB 2.0 x 2, Mic x 1, Audio x 1
(supports HD/AC97 audio)
Expansion Slots 7+1
Cooling System Front: 140 x 25mm white LED fan x 1 / 1200 RPM / 19dBA

Rear: 120mm fan x 1 / 1200 RPM / 17dBA

Top: 140x25mm fan x 1 / 1200 RPM / 19dBA
(supports 120/140mm fan x 2)

Bottom: 120mm fan x 2 (optional)
Power Supply PS2 (optional)
Warranty 2 years
UPC Code 884102015335
