V700
RS700-AFBAG1-US; RS-700-AFBA-G1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Developed to be the highest quality, Cooler Master carefully sourced every aspect of the V Series PSU line to produce a high-efficiency and stable power supply. It's highly efficient even at low loads, extremely stable, and works well beyond the parameters of 80PLUS specifications.

  • Fully modular cable design incorporates a single 700W +12V output that delivers up to 58A
  • 80 PLUS Gold certified: up to 93% efficiency @ 50% load
  • Silent 135 mm FDB fan for lower noise and longer lifespan
  • Four PCI-E 6+2 pin connectors to support high-end GPUs
  • 100% high quality Japanese capacitor ensures performance and reliability.
  • Reliable 5 year warranty




Specs

Model RS700-AFBAG1-US; RS-700-AFBA-G1
Type Intel Form Factor ATX 12V V2.31
Dimension 150 x 170 x 86mm / 5.9 x 6.7 x 3.4 inch
Input Voltage 90-264Vac (Auto Range)
Input Current 10 - 5A
Input Frequency Range 60 - 50Hz
PFC Active PFC (>0.9)
Power Good Signal 100-500ms
Hold Up Time >17ms
Efficiency 90% Typical
MTBF >100,000 Hours
Protection OVP/UVP/OPP/OTP/SCP
Output Capacity 700W
Operation Temperature 0-40°C
Certification CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC
Fan Silent FDB 135mm
Connector M/B 20+4 Pin x 1
CPU 4+4 Pin x 1
PCI-e 6+2 Pin x 4
SATA x 9
4 Pin Peripheral x 4
4 Pin Floppy x 1
Warranty 5 years
UPC Code 884102020773
  • +
    • Click logo to read full review:
      Tweaktown.com: Must Have Editors Choice
      tweaktown.com : December 2013


      "The entire V-series from Cooler Master are great units.  The V700 seems to be the best of the bunch though with superior performance combined with low cost.  It is exactly what most are searching for when building a PC, but often struggle to find."

      » Details
      Jayztwocents
      Jayztwocents : November 2013


      "Cooler Master developed the V-series to re-ascertain its position as the worlds top power supply brand.  Based on a brand new platform, it features outstanding efficiency, especially at typical low idle loads, excellent hold up times, voltage stability and ripple suppression. It only uses highest grade Japanese capacitors, most of them solid capacitors, as well as a massive high quality 42mm transformer. And thanks to high quality FDB fans V-series PSUs are extremely cool and quiet. The V-series uses a fully modular cable system with beautiful all black, extra slim flat-ribbon cables. This makes cable management a breeze and results in nice looking clean builds with the best possible airflow."









      » Details
      Jonnyguru: Recommended
      jonnyguru.com : October 2013


      "We've now looked at all three of Cooler Master's new V series units, and can conclude decisively that there isn't a bad apple in the lot of them. All three are stable as can be, they're flirting with Platinum levels of efficiency, and they're so well built you won't need to buy another unit for a good eight years or so. If Cooler Master keeps putting out units like these, they will become leaders in the marketplace in no time. "

      » Details
      Hitechlegion.com: Editors Choice
      Hitechlegion.com : October 2013

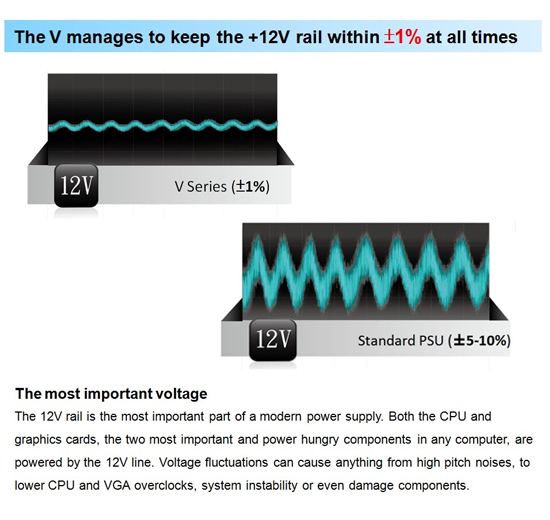

      "The V-Series main claim to fame is the 1% variance on the 12volt rail and this V700 delivered quite solid on the promise. That 1% equates to a variance of only 0.12v. It may not sound like much, but that can be the difference between playing Crysis and a dead system. In reality, this supply only saw a drop of 0.04v, a third of the advertised tolerance. That is truly impressive to see, especially when there was no measurable voltage drop in the 3.3 or 5 volt rails. This is very clean power indeed."

      » Details
  • +
  • +
  • +
