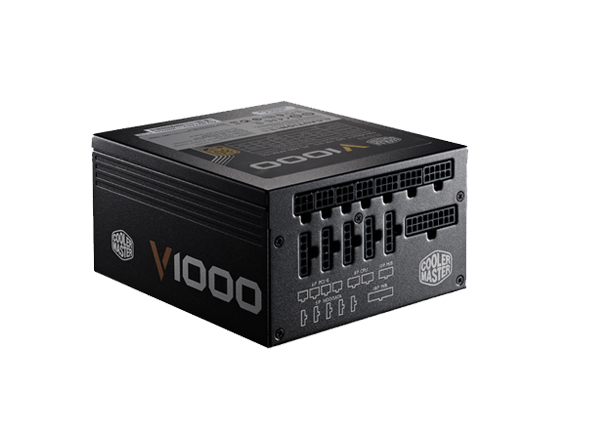

V1000
RSA00-AFBAG1-US; RS-A00-AFBA-G1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Developed to be the highest quality, Cooler Master carefully sourced every aspect of the V Series PSU line to produce a high-efficiency and stable power supply. It's highly efficient even at low loads, extremely stable, and works well beyond the parameters of 80PLUS specifications.

  • Fully modular cable design incorporates a single 1000W +12V output that delivers up to 83A
  • 80 PLUS Gold certified: up to 93% efficiency @ 50% load
  • Silent 135 mm FDB fan for lower noise and longer lifespan
  • Eight PCI-E 6+2 pin connectors to support high-end GPUs
  • 100% high quality Japanese capacitor ensures performance and reliability.
  • Reliable 5 year warranty




Specs

Model RSA00-AFBAG1-US; RS-A00-AFBA-G1
Type Intel Form Factor ATX 12V V2.31
Dimension 150 x 170 x 86mm / 5.9 x 6.7 x 3.4 inch
Input Voltage 90-264Vac (Auto Range)
Input Current 12 - 6A
Input Frequency Range 60 - 50Hz
PFC Active PFC (>0.9)
Power Good Signal 100-500ms
Hold Up Time >17ms
Efficiency 90% Typical
MTBF >100,000 Hours
Protection OVP/UVP/OPP/OTP/SCP
Output Capacity 1000W
Operation Temperature 0-40°C
Certification CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC
Fan Silent FDB 135mm
Connector M/B 20+4 Pin x 1
CPU 4+4 Pin x 2
PCI-e 6+2 Pin x 8
SATA x 9
4 Pin Peripheral x 4
4 Pin Floppy x 1
Warranty 5 years
UPC Code 884102020797
  • +
    • Click logo to read full review:
      Pureoverclock: Editors Choice
      Pureoverclock.com : July 2013


      "In terms of performance, the V Series units finished spectacularly well, with nominal movement on the rails in our voltage regulation testing, while the ripple results were also excellent. Seasonic is the OEM here, and they typically produce some of the very best power supplies on the market, and it’s no different with the V Series."

      » Details
      Jonnyguru: Recommended
      jonnyguru.com : June 2013


      "If Cooler Master wasn't a name on everyone's lips before, it certainly should be now. The V1000 is one heck of a seriously good power supply, people... easily among the best thousand watt models currently on the market. It's powerful, it's as stable as anything ever could be, and you should go buy one right now. "

      » Details
      Pro-clockers.com: Approved
      pro-clockers.com : May 2013


      "Today, we have taken another look at a high powered PSU in the form of the Cooler Master V Series 1000W. The unit continues the great strides that Cooler Master is making in the power supply category. The V series, especially the 1000 watter we looked at is quite capable of pushing today’s biggest and fastest rigs. With a single 12v rail producing over 900W and 83 amps along, you can easy see why this is the direction many will turn when looking to purchase their next PSU. And something else you cannot take away for the V1000 is the often looked for 80PLUS Gold rating.

      We all know the power and performance is there but you can’t take away from the visual aspect of the unit. The visually is appealing and doesn’t draw much attention. The branding is there and is clearly visible but no way over the top. It’s done in such a way that would the V1000 stamped on the sides is classy. The modular cables are brand so way with the rest of the system. All wiring and cables are black. In all other power supplies you can see the different color wirings at the end mainly the 24-pin cable, not the case with the V1000. All those little wires are black. "



      » Details
      lanoc.org
      lanoc.org : May 2013


      "Cooler Master has actually put together a good well rounded power supply with the V1000. Assuming there are no issues with its performance of course. With a 90% efficiency rating it isn’t the highest on the market but it very close. There are still 80 PLUS Platinum certified that will rank slightly higher but they also cost more. With an MSRP of $219.99 the V1000 still falls in the top 1/3 of 1000 watt power supplies but it is priced below similarly equipped models from the competition. "

      » Details
      Tweaktown.com: Must Have Editors Choice
      tweaktown.com : May 2013


      "The Cooler Masdter V1000 represents excellent quality, performance and price.  The only way it would be any better is if it were wrapped in bacon."

      » Details
  • +
  • +
  • +
