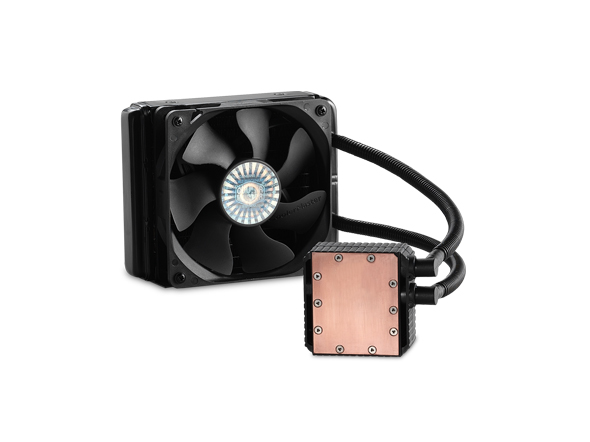

Seidon 120V
RL-S12V-24PK-R1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

The Seidon 120V is Cooler Master’s new water cooling kit that with the best C/P ratio. The compact 120mm radiator virtually fits every case. Thanks to a 120mm PWM fan with a wide RPM range Seidon can operate silently or unleash a powerful cooling storm at your command. The durable FEP Tubing provides the advantages of nearly no moisture absorption, high thermal stability and high pressure tolerance.

Features:
  • Factory filled with coolant, then sealed and pressure tested - zero maintenance for years.
  • Optimized pump and water block provide excellent water flow and system performance.
  • Special designed 120mm radiator provides superior heat dissipation performance and fits in most cases internally and externally.
  • 120mm PWM fan with a wide RPM range to fine tune and balance fan noise and performance.
  • Blue LED indicator lights up when operating.












Specs

Model RL-S12V-24PK-R1
CPU Socket Intel LGA 2011 / 1366 / 1150 /1155 / 1156 / 775

AMD Socket FM2 / FM1 / AM3+ / AM3 / AM2
Dimension 62 x 62 x 36.4 mm (2.4 x 2.4 x 1.4 inch)
Radiator Dimensions 154 x 119 x 27 mm (6.0 x 4.7 x 1.1 inch)
Radiator Material Aluminum
Fan Dimension 120 x 120 x 25 mm (4.7 x 4.7 x 1 in)
Fan Speed 600~2400 RPM (PWM) ± 10%
Fan Airflow 19.17 ~ 86.15 CFM ± 10%
Fan Air Pressure 0.31 ~ 4.16 mm H2O ± 10%
Fan Life Expectancy 40,000 hours
Fan Noise Level (dB-A) 19 ~ 40 dBA
Bearing Type Rifle bearing
Connector 4-Pin
Fan Rated Voltage 12 VDC
Fan Rated Current 0.3A
Power consumption 3.6W
Pump Life Expectancy 70,000 hrs
Pump Noise Level <23 dBA
Pump Rated Voltage 12 VDC
Pump Power Consumption 3.6W
Rotation Speed of Pump 1400-1600 RPM
Warranty 2 years
UPC Code 884102024146
Notice Bundle with CM 690 III available
