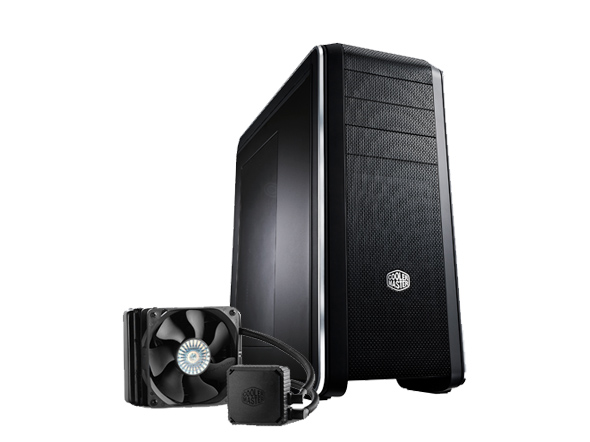

CM 690 III with Seidon 120V Bundle
CMS-693-KWN1-S12


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

      The CM 690 III is a revolutionary update to the popular CM 690 II mid-towers. The exterior retains the curved metal mesh look that the series is known for. The interior has been completely updated – the HDD/SSD combo cage can be switched between 3.5-inch or 2.5-inch drives via adjustable trays without any screws. There's enough room for a 240mm liquid cooling radiator at the top or front, 120mm in the rear and supports up to nine fans, including three large 200mm fans for extreme airflow. And cleaning is hassle free thanks to the multiple dust filters at the bottom, top, and front.
    Features:
  • Full mesh on the front panel and top with large vents on the side panel for superior cooling
  • Three designated places for radiators: 240mm: top & front; 120mm: rear
  • Supports up to three large 200mm fans for extreme airflow with support for up to 9 total fans (KKN1: 9 fans, KWN1: 7 fans)
  • New ODD tool-less design "EZ tray" for quick installation
  • Supports up to 10 SSDs (4 in the removable HDD/SSD combo cage, 1 behind the MB tray) and 7 HDDs with HDD/SSD combo trays
  • Dual Super Speed USB 3.0
  • High-end component support – long graphics cards up to 423mm and tall CPU coolers up to 171mm
  • Multiple removable dust filters (top, front, PSU) for improved system maintenance
  • Top compartment with cover to place personal belongings

Specs

Model CMS-693-KWN1-S12
Color Midnight Black
Material Polymer, mesh front bezel
Dimension 230 x 507 x 502 mm / 9.1 x 20.0 x 19.8 inch
Weight 8.7 kg / 19.2 lbs (net)
M/B Type microATX, ATX
5.25" Drive Bay 3 (exposed)
3.5" Drive Bay 7 (hidden)
2.5" Drive Bay 10 (hidden; 7 from the HDD/SSD combo cages, 1 under the ODD cage, 1 behind the M/B tray,1 at the bottom)
I/O Panel USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports AC97 / HD Audio)
Expansion Slots 7+1
Cooling System Seidon 120V Included

Top: 120/140mm fan x 2, or 200mm fan x 1 (optional)
Front: 200mm fan x 1 (installed), or 120/140mm fan x 2 , 180mm fan x 1(optional)
Rear: 120mm fan x 1 (installed)
Side: 120mm fan x 2 or 180/200mm fan x 1(optional)
Bottom: 120mm fan x 1 (optional)
HDD cage: 120mm fan x 1 (optional)
Power Supply Standard ATX PS2 (optional)
Maximum Compatibility VGA card length: 423 mm / 16.6 inch
CPU cooler height: 171mm / 6.7 inch
Warranty 2 years
