eXtreme Power Plus 600W
RS600-PCARE3-US


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Input/Output:

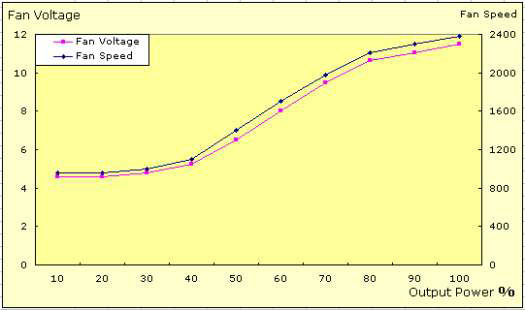

Fan Curve:

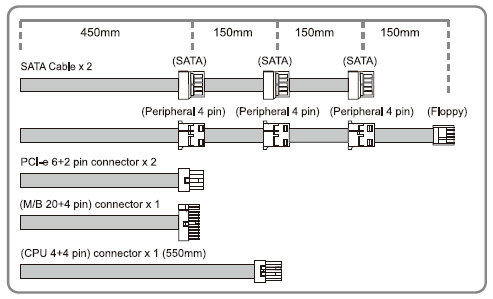

Connectors:
  • Compliance with the newest Intel standard ATX 12V V2.3
  • Support dual +12V1 and +12V2 outputs for higher power usage
  • SATA Connector x 6
  • Two-year warranty
  • High reliability (MTBF > 100,000 hours
  • Protection design (OVP/OCP/OPP/SCP)
  • More than 70% better efficiency at typical load operation
  • 6+2Pin PCI-e Connector x 2 Connector x 6

Specs

Model RS600-PCARE3-US
Type Intel Form Factor ATX12V V2.3
Dimension 150 x 140 x 86 mm
or
5.91 x 5.52 x 3.39 inches
Input Voltage 110 ~ 115V / 220 ~ 230V
Input Current 10A@115Vac / 6.3A@230Vac
Input Frequency Range 47 ~ 63Hz
Power Good Signal 100 ~ 500ms
Hold Up Time >17ms
Efficiency 70% Typically
MTBF >100,000 Hours
Protection OVP / OPP / SCP
Operation Temperature 5~40 C (Nominal Input Voltage)
Fan 120mm fan
Certification Nemko / TUV / UL / CE / BSMI / FCC / GOST / C-tick
Warranty 2 years
UPC Code 884102003066
