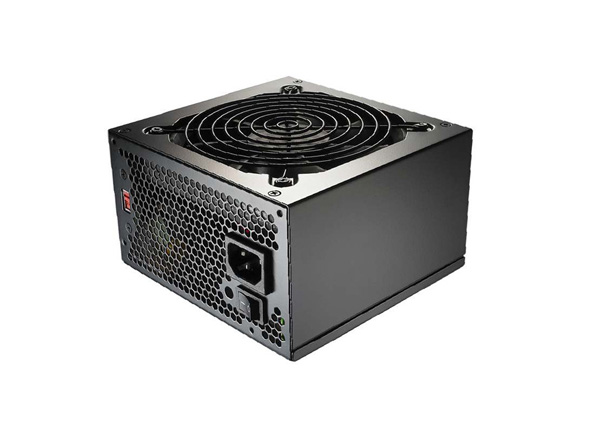

eXtreme Power Plus 700W
RS700-PCAAE3-US


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Extreme series packs a powerful punch by delivering stable streams of power through single +12v output. Our Extreme Power Plus 700W provides over 80% efficiency at typical loading, in addition with a life-time of 100,000 hours and protections for OVP/UVP/OTP/OPP/SCP, this power unit is made to last.
  • Compliance with the latest Intel standard ATX 12V V2.3.
  • Ultra-silent operation with intelligent 120mm fan speed control.
  • Multiple protection design (OVP/UVP/OPP/OTP/SCP).
  • High reliability (MTBF> 100,000 hours).
  • Double Layer EMI Filter retrains noise and to avoid affect to users.
  • Integrating Active PFC with PWN combo controller while increase efficiency.
  • Efficient transformer for reducing 5Vsb power loss when the system is in standby or off-mode.
  • Two-year warranty.

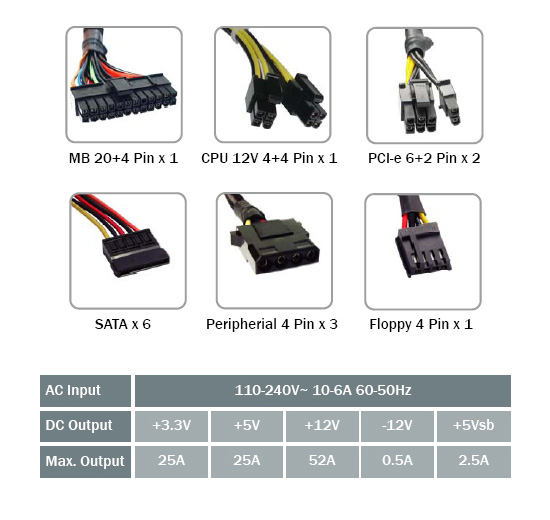

Specs

Model RS700-PCAAE3-US
Type Intel Form Factor ATX 12V V2.3
PFC Active PFC (>0.9)
Input Voltage 90-264Vac (Auto Range)
Input Current 10A@115Vac , 6A@230Vac
Input Frequency Range 47-63Hz
Output Capacity 700W
Fan 120mm
Power Good Signal 100~500ms
Hold Up Time >17ms
Efficiency 80% typical
MTBF >100,000 hours
Protection OVP / UVP / OPP / OTP / SCP
Dimension 150 X 140 X 86 mm / 5.9 x 5.5 x 3.4 inch
Operation Temperature 0~40 C (Nominal Input Voltage)
Regulatory UL / FCC / BSMI / GOST / C-tick / CE
UPC Code 884102008665
