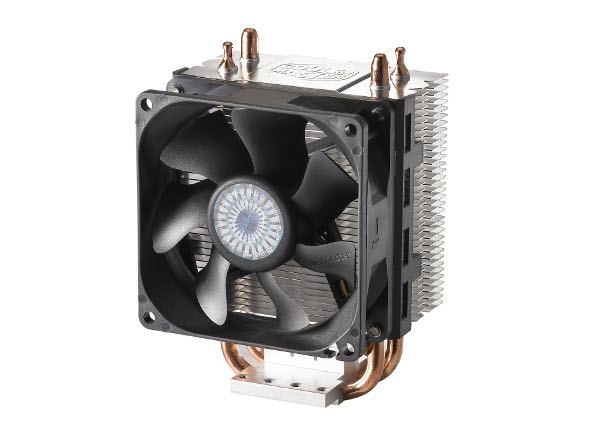

Hyper 101
RR-H101


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Hyper 101 comes with two direct contact heat pipes and dual fan design to provide efficient cooling performance. Hyper 101 comes in different versions – Intel including LGA 1155, AMD or universal sockets; fixed speed fan or PWM fan.
  • Maximum compatible CPU wattage: 70W TDP.
  • 2 x Direct Contact heat-pipes with aluminum fins for excellent heat dissipation.
  • Outstanding cooling performance with compact heat sink dimension that fits into mid-tower chassis.
  • Option for adding 2nd fan to increase cooling power.

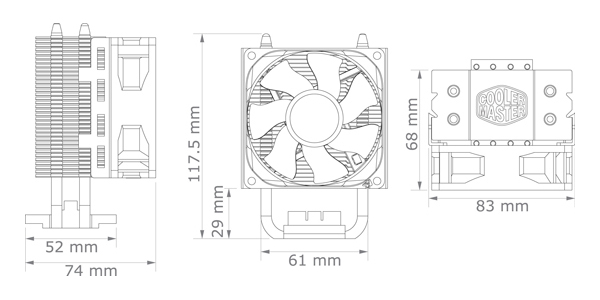

2D Drawing

** Cooler Master North America only carries the Hyper 101i and Hyper 101A versions

Specs

Model Hyper 101i: RR-H101-22FK-RI
Hyper 101A: RR-H101-22FK-RA
CPU Socket Intel Socket LGA 1155 / 1156 / 1150 / 775
AMD Socket AM3 / AM2 / 940 / 939
CPU Support Intel:
Core i5 (partial)
Core i3
Core 2 Quad (partial)
Core 2 Duo
Pentium
Celeron

AMD:
Phenom II X4/X3 (partial)
Phenom X4/X3 (partial)
Athlon II X2
Athlon X2 (partial)
Athlon
Sempron
Weight Intel version: 315g; 0.69lbs
AMD version: 304g; 0.30lbs
Heat Sink Dimensions 83.5 x 68 x 117 mm
Heat Sink Material Aluminum fin / 2 heat pipes
Fan Dimension 80 x 80 x 25 mm
Speed (R.P.M.) Fix speed version: 2200 R.P.M.
PWM version: 800 – 3000 R.P.M
Air Flow (CFM) Fix speed version: 30 CFM
PWM version: 10.9 - 40.8 CFM
Air pressure (mmH2O) Fix speed version: 2.28 mmH2O
PWM version: 0.3 - 4.23 mmH2O
Noise Level Fix speed version: 22 dBA
PWM version: 13 – 28 dBA

dBA Reference
Maximum TDP 70W
Bearing Type Long life sleeve bearing
Fan Life Expectancy 40,000 hours
Connector Fix speed version: 3-pin
PWM version: 4-pin
UPC Code Hyper 101i: 884102007026
Hyper 101A: 884102007033
