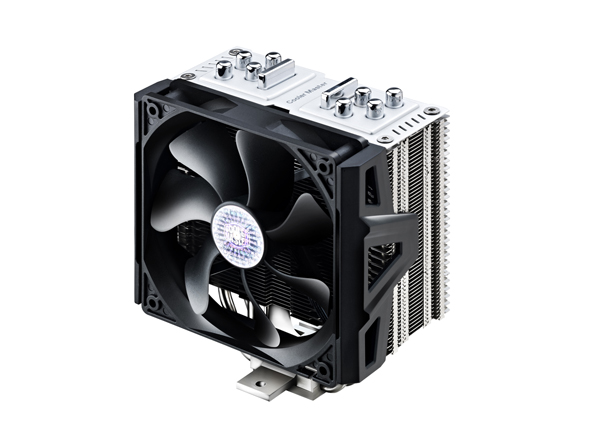

TPC 612
RR-T612-20PK-R1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

TPC 612 is the next generation of CPU cooler thanks to new vertical vapor chamber technology combined with four 6mm heat pipes. A nickel plated, pure polished copper base spreads heat into a tall, aluminum alloy heat sink ensuring optimal cooling. TPC 612 has a slimmer heatsink than the TPC 812 to support overclocking memory modules.



  • The TPC 612 uses 2 separate cooling technologies to transfer heat – heat pipes and vertical vapor chambers.
  • 100% pure polished copper base – combined with improved soldering technologies for the best thermal transfer.

  • Special fin design – heatsink receives concentrated cold airflow.
  • Slim heatsink provides great compatibility for overclocking memory modules with tall heat spreader.
  • Clip-on fan mounting bracket.





Specs

Model RR-T612-20PK-R1
CPU Socket Intel® LGA 2011/1366/1156/1155/1150/775

AMD FM1/AM3+/AM3/AM2+/AM2
Dimension 145 x 97 x 161.6 mm (5.7 x 3.8 x 6.4 in)
Heat Sink Dimensions 134 x 85 x 161.6 mm (5.3 x 3.4x 6.4 in)
Heat Sink Material Copper Base / 2 Vapor Chambers

4 Heatpipes / Aluminum Fins
Heat Sink Weight 640g (1.72 lb)
Heat Pipes Dimensions Ø6mm
Fan Dimension 120 x 120 x 25mm (4.7 x 4.7 x 1 in)
Fan Speed 600 ~ 2,000 RPM (PWM) ± 10%
Fan Airflow 24.9 ~ 82.9 CFM ± 10%
Fan Air Pressure 0.3 ~ 2.7 mm H2O ± 10%
Fan Life Expectancy 40,000 hrs
Noise Level 9 ~ 36 dBA
Bearing Type Rifle Bearing
Connector 4-Pin
Fan Weight 122g (0.33 lb)
Weight 762g (2.05 lb)
Warranty 2 years
UPC Code 884102018213
