Vortex Plus
RR-VTPS-28PK-R1


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Vortex Plus is a low profile CPU cooler with compact size but uncompromising cooling efficiency. The compact feature best suits in HTPC chassis or chassis with slim width and limited space. The heatsink comes with 4 heatpipes and direct contact base to maximize the heat conductivity and dissipation efficiency. The balanced PWM fan works to provide high airflow under high RPM mode.

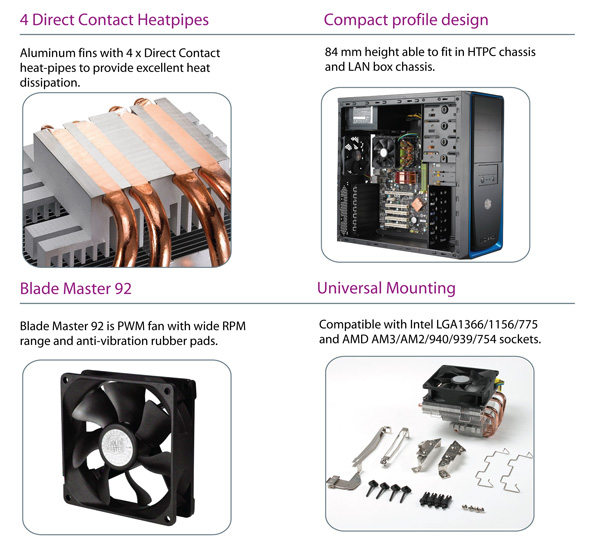

  • Compact profile design for HTPC chassis and LAN box chassis.
  • Universal mounting for Intel LGA1366/1156/775 and AMD AM3/AM2/940/939/754 sockets.
  • 4 x Direct Contact heatpipes for seamless contact between CPU surface and cooler.


Specs

Model RR-VTPS-28PK-R1
CPU Socket Intel Socket LGA1366 / 1156 / 775
AMD Socket AM3/AM2/940/939/754
CPU Support Intel LGA 1366 / 1156 / 1150 / 775 Socket CPU
- Core™ i7 Extreme
- Core™ i7
- Core™ i5
- Core™ i3
- Core™2 Extreme / Quad / Duo
- Pentium
- Celeron
AMD AM3 / AM2 / 940 / 939 / 754 Socket CPU
- Phenom™ II X4 / X3 / X2
- Phenom™ X4 / X3
- Athlon™ II X4 / X3 / X2
- Athlon™ X2
- Athlon™
- Sempron™
(For the latest CPU support information,
please visit our website.)

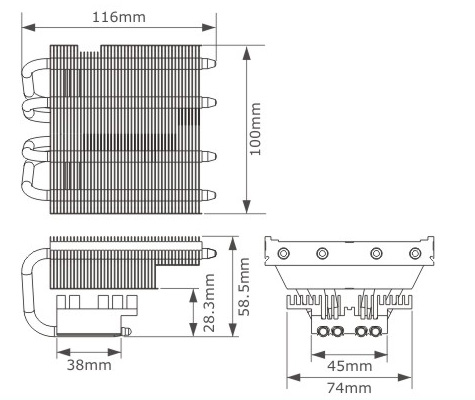

Dimension 116 x 100 x 84 mm (4.6 x 3.9 x 3.3 inch)
Weight 445g (1 lbs)
Heat Sink Material Aluminum fins + 4 heatpipes
Fan Dimension 92 x 92 x 25 mm (3.6 x 3.6 x 1 inch)
Fan Speed 800 – 2800 RPM (PWM)
Fan Airflow 15.7 – 54.8 CFM
Fan Air Pressure 0.35-4.27 mm H2O
Bearing Type Long life sleeve bearing
Fan Life Expectancy 40,000 hours
Fan Noise Level (dB-A) 17 – 35 dBA dBA Reference
Connector 4-pin
Maximum TDP 150W
UPC Code 884102008511
  • +
