CM 690 II Advanced nVidia Edition
NV-692A-KWN2


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

The wildly popular and top-selling CM 690 II Advanced now comes in a NVIDIA Certified Edition. It has been stylized with a NVIDIA themed side panel, graphics, and clean looking external and internal accents. This spacious mid-tower has room for up to 3 graphics cards, high-end CPU coolers, top or bottom mount liquid cooling radiators and a 1.8”/2.5” drive adapter. It also features a much improved airflow with oversized mesh and plenty of space for up to 9 fans. Maintenance is a breeze with tool-free drive bays, elegantly simple cable management, and a large CPU cooler retention hole.


Features:
  • Oversized front and top mesh design for superb ventilation.
  • Accommodates 120 x 240 mm radiator inside the top or bottom.
  • Dust-control filters for all meshed areas.

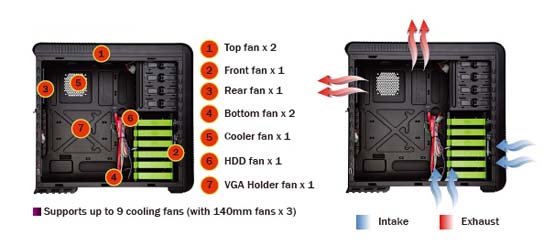

  • Air cooling support for up to 9 fans (with support for up to 3 x 140mm fans).

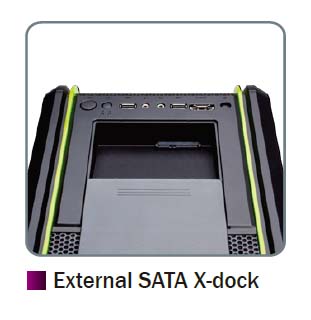

  • External SATA X-dock.
  • Front green LED fan on/off switch.
  • Rear retaining holes for water cooling kit.
  • Includes 1.8” & 2.5” HHD and SSD adapter.
  • Cable management and CPU retaining hole for easy maintenance.

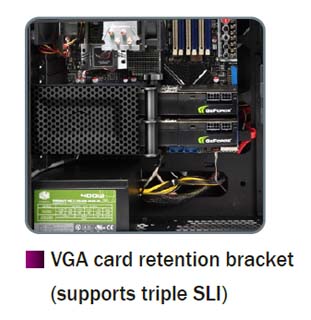

  • Includes VGA card bracket (supports triple GPU card).















Specs

Model NV-692A-KWN2
Available Color Black / Green
Material Steel and Plastic
Dimension 8.4 x 19.5 x 20.8 inches
Weight Net: 21.08 lbs ; Gross 25.49 lbs
Motherboards Micro-ATX / ATX
5.25" Drive Bay 4 (without use of exposed 3.5" drive bay)
3.5" Drive Bay 6 Hidden / 1 Exposed (converted from one 5.25" drive bay)
I/O Panel USB 2.0 x 2, ESATA x 1. mic x 1, Audio x 1 (supports HD / AC97 audio)
Cooling System Front: 140 x 25 mm Green LED fan x 1 / 1200 RPM / 19 dBA

Top: 140 x 25 mm fan x 1 / 1200 RPM / 19 dBA (supports 120 / 140 mm fan x 2)

Right Side Panel: 80 x 15mm x 1 (optional)

Rear: 120mm included

VGA Holder: 80x15mm fan x1 (optional)
Power Supply Standard ATX PS2 / EPS 12V (optional)
Warranty 2 years
UPC Code 884102010231
