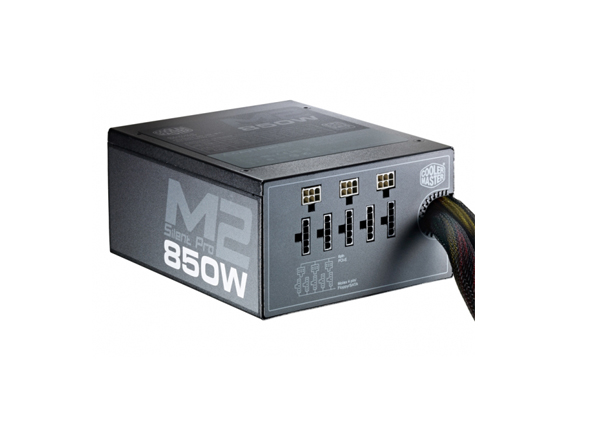

Silent Pro M2 850W
RS850-SPM2D3-US; RS-850-SPM2


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

Built for quality and performance, the Silent Pro M2 850W utilizes a single 12V rail that boasts a significant increase in available power output per power supply model over its predecessors. It translates into increased total amperage, high quality components to increase efficiency, environmentally friendly RoHS and ERP 2010 Certifications, and a long life 135mm fan with a durable Hydraulic Dynamic Bearing that decreases noise.
  • Copper-Aluminum Heat Sink
    This slick CM design incorporates an expansive flat surface area for superior heat conductivity out to the aero-dynamic fins, therefore removing heat at an unprecedented rate.
  • Silent Operation
    135 mm Hydraulic Dynamic Bearing Fan for quieter operation
  • Single 12V Power Rail
    Single 12 V Power Rail Tackling challenges from the most power-intensive peripherals head on, this solitary 12 V power rail provides ample power and strong resistance to any overloading up to 68A.
  • Modularized Cabling
    Neatly arranged connectors on the rear plate connect to flat internal cabling improve installment facility while allowing for greater airflow through the PSU.
  • Intel Compliant
    Proficiently prepared to provide a stable power source and connectors for the latest ATX 12V v2.3 Intel processors.

  • Eco-friendly design: Erp Lot6 Ready!
    A maximum 5Vsb current draw target in S5 off-mode of 0.1A for its motherboards and needed to ensure the system will consume < 1W in its off-mode
  • And More
    - Multiple updated connectors for all types of interfaces (PCIe, SATA etc.)
    - Double-Layer EMI Filter Dual protection from electromagnetic interference.
    - Multiple Protection Design (OVP/UVP/OPP/OTP/SCP)
    - High reliability with an MBTF of at least 100,000 hours of use.
    - Five Year Warranty.







Specs

Model RS850-SPM2D3-US; RS-850-SPM2
Type Intel Form Factor ATX 12V V2.3
Dimension 150 x 180 x 86mm
5.9 x 7.1 x 3.4 inch
Input Voltage 90-264Vac (Auto Range)
Input Current 11 – 5.5A
Input Frequency Range 47 - 63Hz
PFC Active PFC (>0.9)
Power Good Signal 100-500ms
Hold Up Time >17ms
Efficiency 80 Plus Silver
MTBF 100,000 Hours
Protection OVP/UVP/OCP/OPP/OTP/SCP
Output Capacity 850W
Operation Temperature 0~40°C (Nominal Input Voltage)
Regulatory TUV / CE / UL / FCC / BSMI / GOST / C-tick / KC / CCC
Fan 135mm Hydraulic Dynamic Bearings
Certification 80 Plus Silver
Connector M/B 24 Pin Connector x 1
CPU 8 Pin x 2
PCI-E 8 Pin x 3
PCI-E 6+2 Pin x 3
SATA x 12
4 Pin Peripheral x 5
4 Pin Floppy x 1
Warranty 5 years
UPC Code 884102014543
