TPC 812
RR-T812-24PK-R1; RR-T812-24PK-R2


Disclaimer: Displayed parts and accessories may not be included in the actual product package.

Description

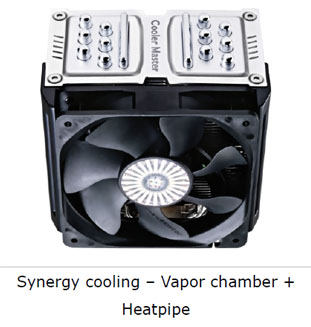

The first ever CPU heatsink to utilize vertical vapor chamber cooling and combine it with heat pipe technology, TPC 812 is prepared to handle the massive heat generated by overclocking and benchmarking. Vertical vapor chamber working in tandem with heat pipes and a specialized heatsink and fin design allow the TPC 812 to outperform the competition.
You must have Flash Player? 8 or above to view this content.










Features:

1. The TPC 812 uses 2 separate cooling technologies to transfer heat – heat pipes and vertical vapor chambers.
2. Ready for overclocking, benchmarking and silent cooling.
3. The first-ever CPU heatsink to use vertical vapor chamber technology.
4. 100% pure polished copper base – combined with improved soldering technologies for the best thermal transfer.
5. Special fin design – heatsink receives concentrated cold airflow.
6. Improved air pressure design and fan mounting system.












Specs

Model RR-T812-24PK-R1; RR-T812-24PK-R2
CPU Socket Intel Socket:
LGA 2011 / 1366 / 1156 / 1155 / 1150 / 775 *

AMD Socket:
FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
CPU Support Intel:
Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron

AMD:
FX-Series / A-Series / Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™
Dimension 138 x 103 x 163mm (5.4 x 4.1 x 6.4 in)
Heat Sink Dimensions 134 x 74 x 158 mm (5.3 x 2.9 x 6.2 in)
Heat Sink Material Copper Base / 2 Vapor Chambers
6 Heatpipes / Aluminum Fins
Heat Sink Weight 826g (1.83 lb)
Heat Pipes Dimensions ø6mm
Fan Dimension 120 x 120 x 25mm (4.7 x 4.7 x 1 in)
Fan Speed 600 – 2,400 RPM (PWM) ± 10%
(1,600 RPM with Silent Mode Adapter)
Fan Airflow 19.17 - 86.15 CFM ± 10%
(59.54 CFM @ 1600RPM)
Fan Air Pressure 0.31 – 4.16 mm H2O ± 10%
(1.99mm H2O @ 1600RPM)
Fan Life Expectancy 40,000 hrs
Fan Noise Level (dB-A) 19 - 40 dBA dBA Reference
Bearing Type Long Life Sleeve Bearing
Connector 4-Pin
Fan Rated Voltage 12 VDC
Fan Rated Current 0.2A
Power consumption 2.4W
Maximum TDP 300W
Fan Weight 152g (0.34 lb)
Notice * Supplied accessories may differ by country or area. Please check with your local distributor for further details.
Warranty 2 years
UPC Code 884102015229 (RR-T812-24PK-R1)
884102021718 (RR-T812-24PK-R2)
  • +
    • Click logo to read full review:
      Rage3d.com: 4 Stars
      rage3d.com : September 2012


      "There are benefits to whole system cooling, and depending on your system's socket orientation you'll be able to increase cooling for your graphics card(s) as well. It's got the cooling chops, a svelte design and reasonable dimensions, just a little pricey. We award Cooler Master's TPC 812 CPU cooler 4 stars. "

      » Details
      Techreaction.net: Gold Silicon Award
      Techreaction.net : September 2012


      "The performance and quality of this cooler justifies the price and makes this a good deal and a recommended purchase."

      » Details
      Neoseeker.com: Recommended
      neoseeker.com : August 2012


      "Cooler Master has consistently delivered high quality cooling products and the TPC-812 is just one more notch in their belt. The TPC-812's performance under load testing was just three Celsius warmer than the more expensive $190 water cooling setup. Priced around $70 dollars retail, the TPC-812 offers the best price-to-performance ratio yet."

      » Details
      Custompcreview.com: Gold Awesome Award
      Custompcreview.com : July 2012


      "The Cooler Master TPC 812 is a very well built, high performing cooler despite coming with only a single 120mm fan. Those looking for a new smaller sized CPU cooler with top notch performance, definitely consider going with the TPC 812."

      » Details
      HardwareSecrets: Golden Award
      hardwaresecrets.com : May 2012


      "In addition to its performance, the price tag of the TPC 812 is similar to the most high-end air coolers on the market.  Due to its excellent cooling performance, we are giving the Cooler Master TPC 812 the Hardware Secrets Golden Award."

      » Details
      Bjorn3d: Seal of Approval
      bjorn3d.com : May 2012


      "The CoolerMaster TPC 812 CPU cooler does a marvelous job of cooling. It is a quiet, well made, piece of equipment that would look good in any system. The price is a bit higher than some of the other coolers in the market, but the performance level exceeds those coolers as well. It earns the Bjorn3D Seal of Approval."

      » Details
      Tweaktown.com: Must Have Best Value
      tweaktown.com : May 2012


      "The TPC 812 has all the technology to be the next best cooler out there today!  At $69.99 I would suggest this cooler and the purchase of a matching fan and enjoy all the overclock you can throw at it!"

      » Details
      Hitechlegion.com: Editors Choice
      Hitechlegion.com : May 2012


      "There was a lot of hype around the TPC 812 and its vertical vapor chambers prior to release, and this time even Flavor Flav is going to have to believe it. Cooler Master just gave the CPU cooling competition a rather hard kick in a rather soft spot with the TPC 812. Incredible cooling with unmatched cooling to size, excellent build, easy installation and excellent fit and finish make the Cooler Master TPC 812 the new king of the upper mainstream/budget enthusiast market, and the best cooler we have ever tested that uses a single tower."

      » Details
      legitreviews.com
      legitreviews.com : May 2012


      "The Cooler Master TPC 812 performed rather well for a single fan cooler. It was within 5 degrees of the twin fan ND-D14 in all the testing and was pretty much on par with the twin fan NZXT Havik 120. With the TPC 812 on low the cooler is quite quiet, and its performance at stock settings is nice coming in at 57*C. "

      » Details
      frostytech.com
      frostytech.com : April 2012


      "Coolermaster TPC-812 heatsink performs exceptionally well on the synthetic Intel platform at stock fan speed, within the Top 5 Intel heatsinks tested to date in fact! The synthetic AMD test platform witnessed similar results"



      » Details
      Modders-inc - Editors Choice
      modders-inc.com : April 2012


      "Cooler Master has worked some serious mojo on this cooler by combining the VVC technology and combining it with 6 heat pipes, as well as the aluminum fins engineered for airflow pressure and coverage. Cooler Master has a winning combination in this unit. Very impressive!"

      » Details
      Tech-kings.net: Crowned Product Award
      Tech-kings.net : April 2012


      "when considering overclocking, 24/7 runtimes, or other demanding scenarios, the $20 difference becomes increasingly valuable, as the TPC 812's performance advantage widens with greater loads, and for enthusiasts, the $20 difference is relatively small, especially when comparing to the variety of other much more expensive high-end alternatives the TPC 812 will compete with."

      » Details
      Ninjalane.com: Furious 5 of 5
      ninjalane.com : April 2012


      "Cooler Master claims that the TPC 812 can deliver the performance of a compact watercooler  in a simple tower cooler design and, based on our benchmarking results, we can believe that.  As our benchmarks showed the TPC 812 actually got more efficient at 4.7Ghz and still kept the load temperature within an acceptable range.

      Overall heatsink construction is extremely good and features a six heatpipe design that staggers as they enter the radiator.  The position of the heatpipes promotes exposure to oncoming air while still retaining good airflow characteristics.  You will find two vertical vapor chambers located in the center of the TPC 812 and work to increase overall heat capacity.  As we noticed in our heatsink tests the vapor chambers tend to work best under higher heat loads which would indicate, to us, that the standard heatpipes do the most work while the vapor chamber kicks in under higher loads.  "

      » Details
      Pro-clockers.com: Highly Recommended
      pro-clockers.com : April 2012


      "We found that the Cooler Master TPC 812 is one heck of a cooler. Due to the change in platforms we were only able to put the new cooler up against one other cooler. But that cooler used two 120mm fans and was able to take it down. And another plus while achieving this is the cooler remained quiet. Making it one of the best noise-versus-performance we ever tested. The ideal of using the dual thermal cooling solutions was a good one as it performed like advertised.

      The Cooler Master TPC 812 cooler will retail for $69.99 once in stores. I like the cooler in this price range as the performance I good to great. And won’t break the bank of most that are out to buy a better cooler."



      » Details
  • +
  • +
  • +
